Ultra Bright Blue 0.8-Inch (22.0mm) 3-Digit + Arrow 7-Segment Common Anode LED Display for Lift/Lift Floor Indicators
Product Description
Product Overview

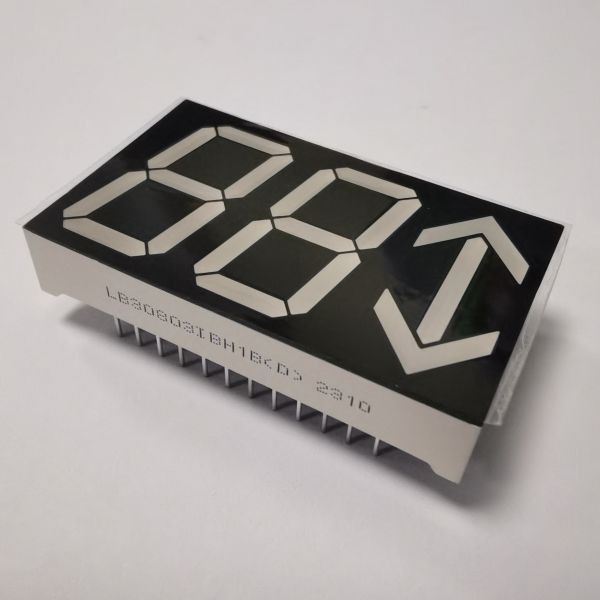

Introducing the 3-Digit + Arrow 7-Segment Common Anode LED Display—a lift-specific optimized solution engineered for floor number indicators and position signage. Designed to prioritize intuitive direction guidance, long-distance readability, and lift environment resilience, this display integrates 3-digit numeric readouts with dedicated up/down arrows, excelling at core lift functions: floor number display, direction indication, and status cues.
Its 0.8-inch (22.0mm) character height ensures clear visibility from 2–5 meters, while the 43×26×8mm slim profile fits seamlessly into lift control panels, ceiling displays, or hallway position indicators—no bulky redesigns required. The ultra bright blue light + white segments on black surface deliver high contrast, cutting through lift ambient light without eye strain.
With common anode polarity, low power consumption, and RoHS/REACH compliance, this display thrives in 24/7 lift operation—ideal for residential, commercial, and high-rise building elevators.
Core Technical Specifications
| Category | Parameter | Specification (Lift-Optimized) |
| Basic Design | Display Type | 3-Digit 7-Segment + Up/Down Arrow LED Display |
| | Polarity | Common Anode |
| | Character Height | 0.8 inch (22.0mm) |
| | Outer Dimensions (L×W×H) | 43 × 26 × 8mm |
| | Segment/Surface Finish | White Segments on Black Surface |
| Optical Performance | Emitting Color | Primary: Ultra Bright Blue; Optional: Red/Green/Yellow/Orange/Amber/White |
| | Key Optical Traits | High luminous intensity, even segment distribution, anti-glare design |
| Electrical Parameters | Forward Voltage (VF) | 2.8-3.2V/LED (blue/green/white); 1.8-2.2V/LED (red/orange/amber/yellow) |
| | Forward Current | 5-10mA per LED |
| | Power Consumption | Low (extremely low current draw) |
| Quality & Compliance | Core Advantages | Directional arrow integration, industrial standard size, stable performance |
| | Compliance | RoHS Compliant, REACH Compliant, HALOFEN FREE |
Key Features (Lift-Optimized)
1. Intuitive Direction + Floor Recognition
Integrated Up/Down Arrows: Dedicated arrow segments (↑/↓) sync with lift movement—eliminates separate direction indicators, simplifying lift control panel design. Arrows are sized to match 3-digit height (22.0mm) for visual harmony, ensuring passengers quickly identify lift direction (critical for busy lobbies or high-rise buildings).
Ultra Bright Blue Visibility: 22.0mm large characters + high luminous intensity cut through lift ambient light and remain clear in low-light conditions (e.g., lift power-saving mode). Prevents misreading floor numbers during rapid lift movement.
Even Luminous Distribution: Segments (digits + arrows) emit uniform brightness (≤5% variation) — no dim edges or “hot spots” that distort arrows or digits, ensuring reliable readability for all passengers (including those with visual impairments).
2. Lift Environment Resilience
Stable Performance in Dynamic Conditions: Withstands lift vibration (floor transitions, door operation), temperature fluctuations, and humidity—no flickering or segment failure during 24/7 operation.
Long Lifetime (50,000+ Hours): High-quality LED chips and black surface construction match the 15–20 year service life of lifts—eliminates frequent replacements, reducing maintenance downtime (critical for high-traffic buildings).
Safety: No harmful halogens, ensuring safe operation in enclosed lift cabins (no toxic emissions in case of extreme temperature or damage) and meeting strict building safety standards.
3. Easy Integration & Manufacturing-Friendly
Common Anode Polarity: Works with standard lift driver ICs—simplifies circuit design for lift manufacturers and integrates seamlessly with lift control systems.
Industrial Standard Size: Fits into most lift control panel PCB layouts (residential/commercial lifts) without requiring redesigns. Supports multi-display setups with consistent dimensions.
Easy Assembly: PCB direct-mountable design supports automated production lines—speeds up high-volume lift manufacturing and ensures secure, vibration-resistant installation (critical for moving lifts).
4. Versatility & Global Compliance
Multi-Color Functional Options:
Blue (Primary): Modern aesthetic for commercial/residential lifts, calm and non-distracting.
Red: High-visibility for emergency lifts or direction alerts.
Green: Eco-friendly cues for energy-saving lifts.
Yellow/Orange/Amber: Warm tones for luxury building lifts.
White: Neutral high-contrast for low-light lobbies.
RoHS/REACH Compliance: Free from lead, mercury, and harmful substances—safe for enclosed spaces and export to global markets (EU, North America, Asia), meeting international building and electronics safety standards.
5. Lift-Specific Practicality
3-Digit Capacity: Supports floor numbers from “000” (basement) to “999” (high-rise buildings)—covers all residential/commercial lift requirements.
Low Power Consumption: Extremely low current draw reduces energy use for 24/7 lift operation—aligns with building energy-saving standards and cuts long-term utility costs.
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 30 | | 40 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 569 | | 574 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.5 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 585 | | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 600 | | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 50 | | 60 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 630 | | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 80 | | 100 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 625 | | 635 | nm |
Code:Pure Green -G
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 120 | | 180 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 515 | | 525 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 120 | | 140 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 460 | | 465 | nm |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 120 | | 140 | mcd |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | | 0.30,0.33 | nm |
